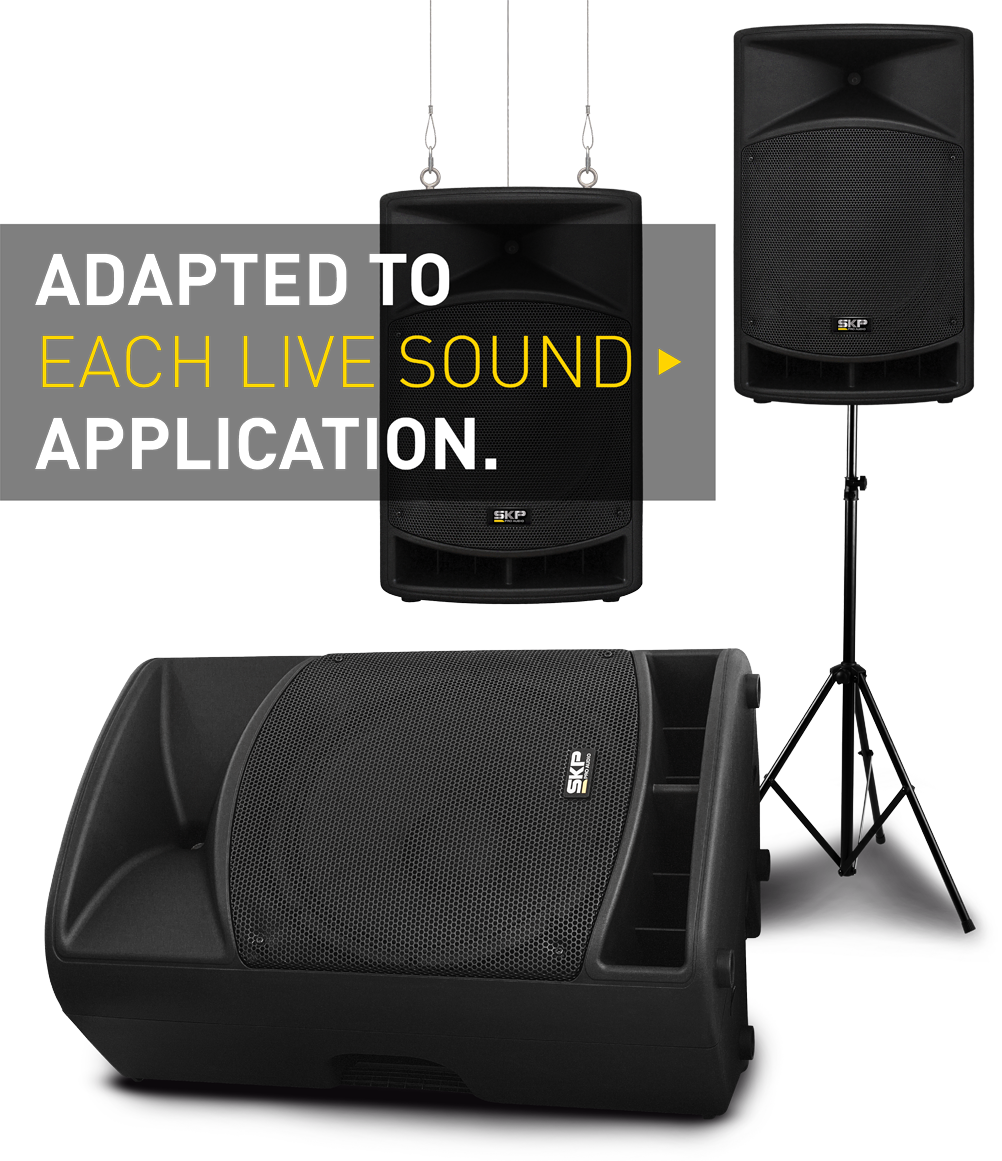

The serie Q is a bi-amplified high acoustic box of high performance and high quality. It is strong and has a powerful digital signal processor that allows you to choose, with the same box, different configurations according to the situation. Thanks to led screen in the rear panel, it is easy to access, use and read.
Uses the delay to adjust the phase between systems located at distances from each other.

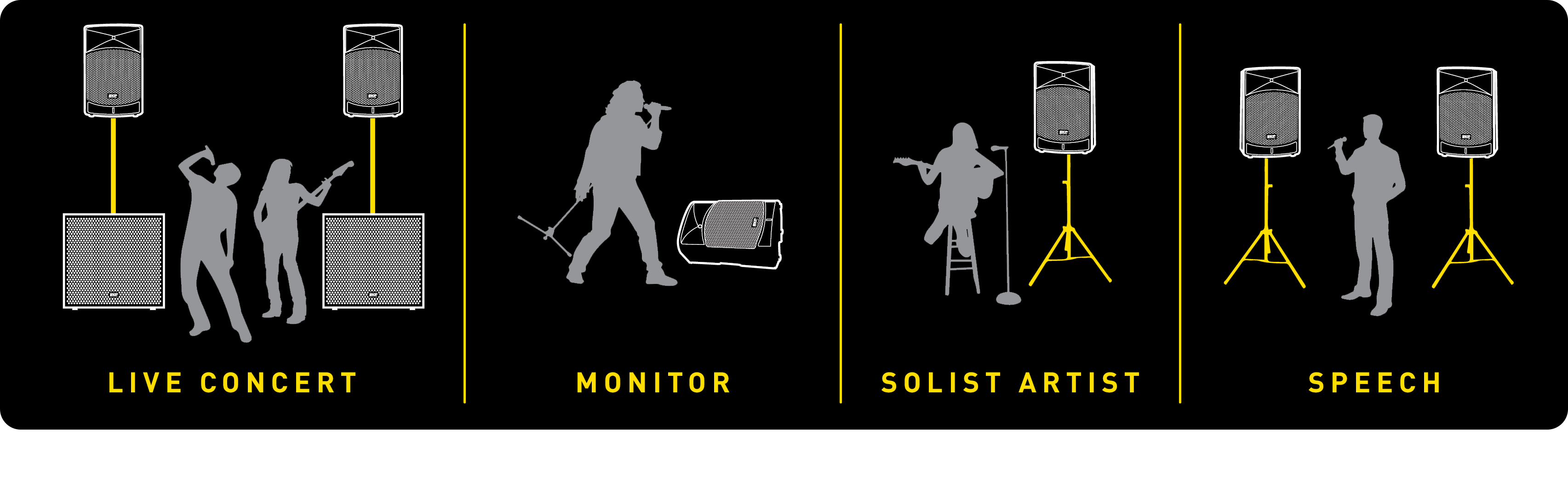

Get the most out of the system by setting the mode according to the sound reinforcement situation.
3-band digital equalizer to control the frequency spectrum according to the need.
Optimizes the system for both PA and floor monitor.
Low cut with selectable frequencies to complement the system with an external subwoofer.
Precise VU meter, clip indicator and global level controller.
• Coverage: 90º Horizontal / 60º Vertical
• Crossover Frequency: 2.4kHz
• Power Supply: 100V-240V~60/50Hz
• Material: Rugged Molded Plastic
• Color: Black
• Handles: Top x 1 , Side x 2
• Flying Hardware: Top x 2 , Back x 1
• Pole Socket: Botton x 1 (35mm)
• Input Sensitivity Line: OdBu
• Input Sensitivity Mic: -40dBu
• Input Connectors:
CH1: XLR/Jack combo input
CH2: XLR/Jack combo input + 3.5inch Jack Output
Connector (link) XLR
• Output Connectors: XLR Mix Line Out
Speaker Type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency Response(-10dB) 50Hz-20kHz
Low Frequency Driver 12” - 2” Voice Coil
High Frequency Compression Driver 1” Throat / 1.44” Voice Coil
Power Rating 1000W
LF Power Rating 700W
HF Power Rating 300W
Max SPL 126dB
Dimension (W x H x D) 15x25x14(in)
Weight (net) 37.4lb
Speaker Type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency Response(-10dB) 45Hz-20kHz
Low Frequency Driver 15” - 2” Voice Coil
High Frequency Compression Driver 1” Throat / 1.44” Voice Coil
Power Rating 1000W
LF Power Rating 700W
HF Power Rating 300W
Max SPL 127dB
Dimension (W x H x D) 18x28x15(in)
Weight (net) 44.5lb
| Model Q12 | Model Q15 | |
|---|---|---|
| Low Frequency Driver 12" | ||
| Low Frequency Driver 15" | ||
| Frequency Response(-10dB) 50Hz-20kHz | ||
| Frequency Response(-10dB) 45Hz-20kHz | ||
| Bi-amp powered | ||
| DSP EQ, MODE, LOCATION, HPF & DELAY | ||
Every detail matters
It has high resistance support to hold it on high surfaces.
Thanks to its ergonomically designed handles, the easy movement of the product is possible.
The precise completion of the pieces that make up the Q-Line enhance the quality of the speaker.
Designed to work in concert with the woofer to produce deep bass response, low-frequency extension and reduced turbulence
The Q-Line is composed of materials that make it a robust and lightweight product which makes it Class D.
Its rear panel allows quick access to its functions thanks to its DSP screen.
