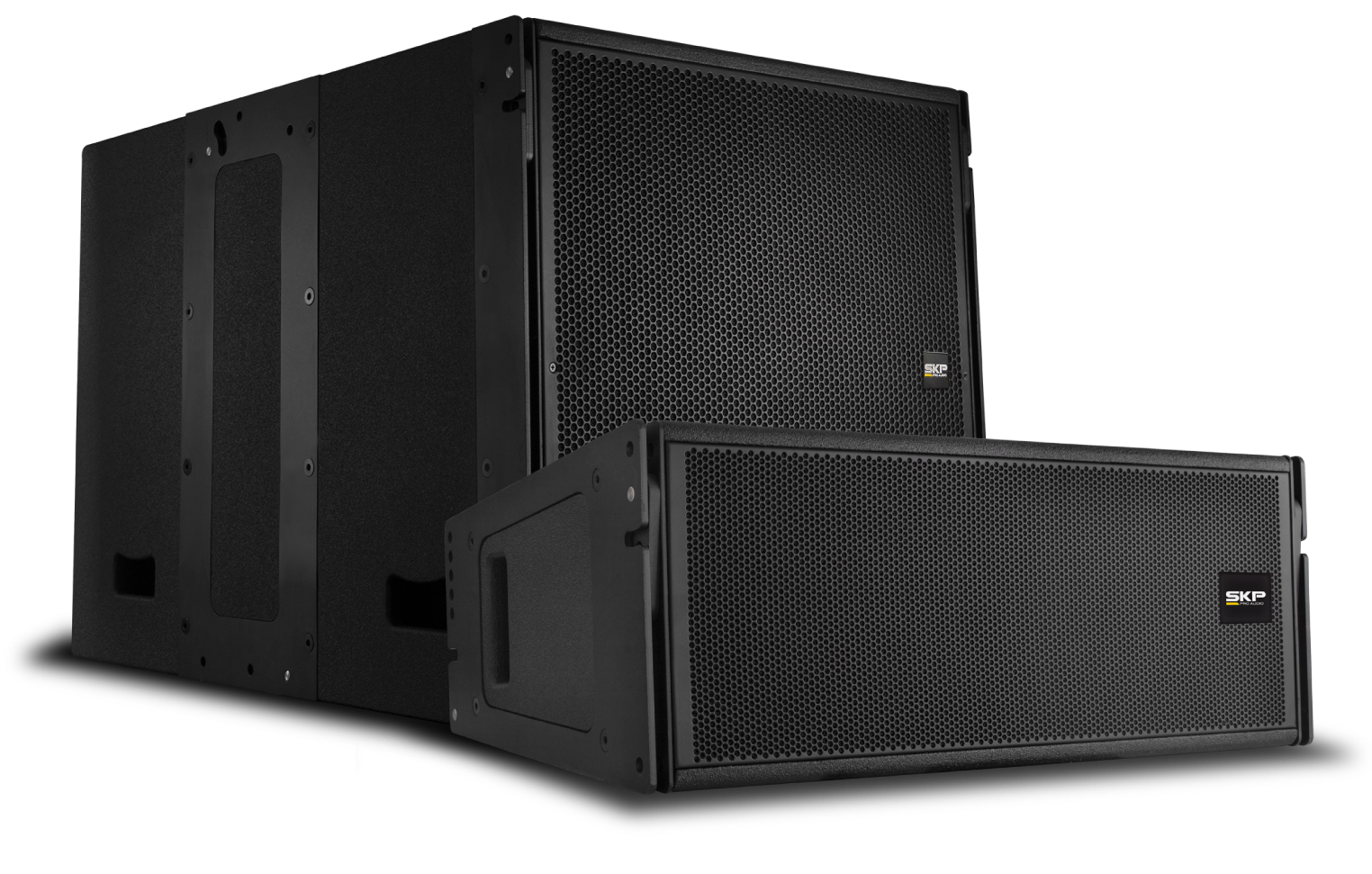

KLS Series

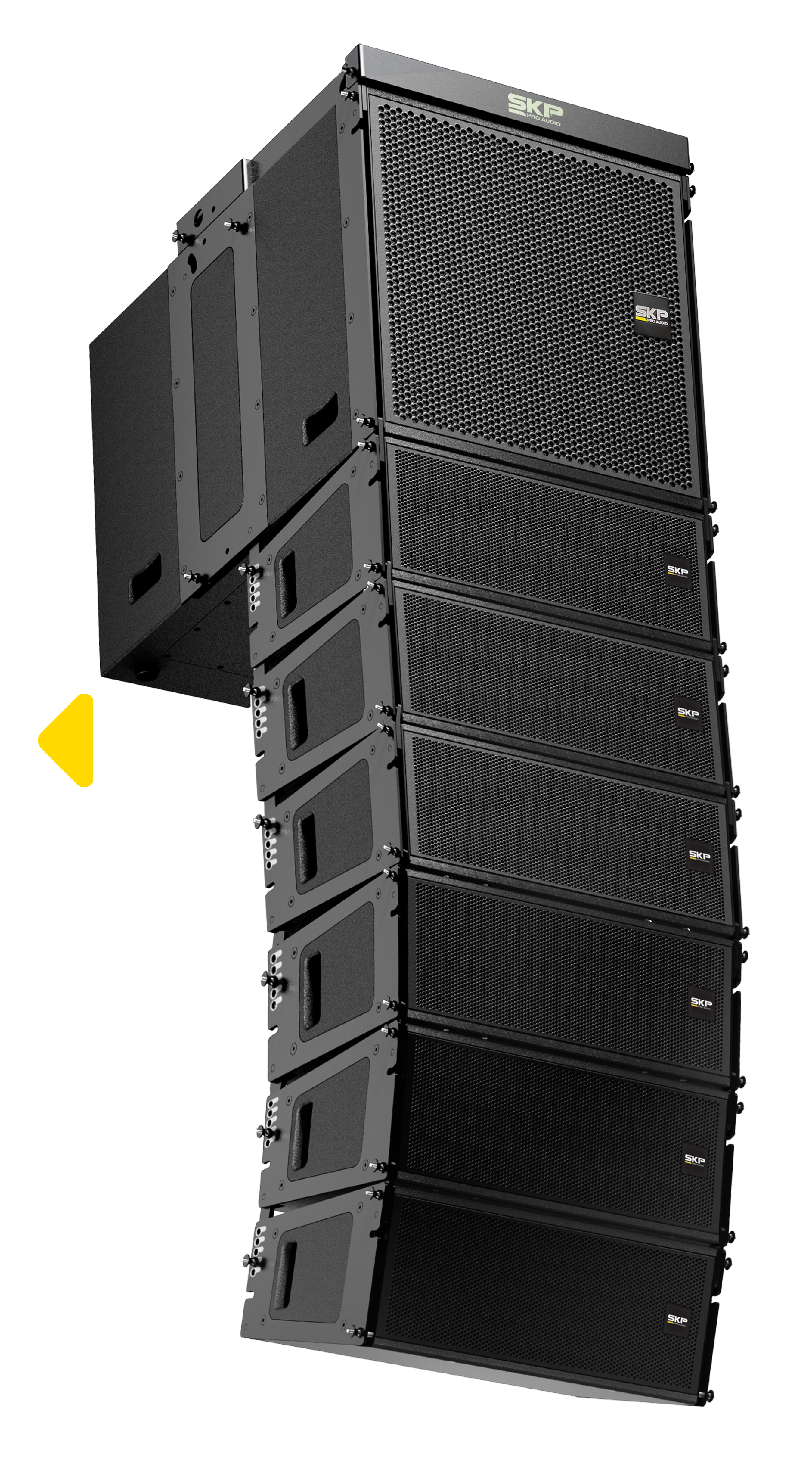

4-way Line Array System
KLS-8.3 / KLS-18.1S

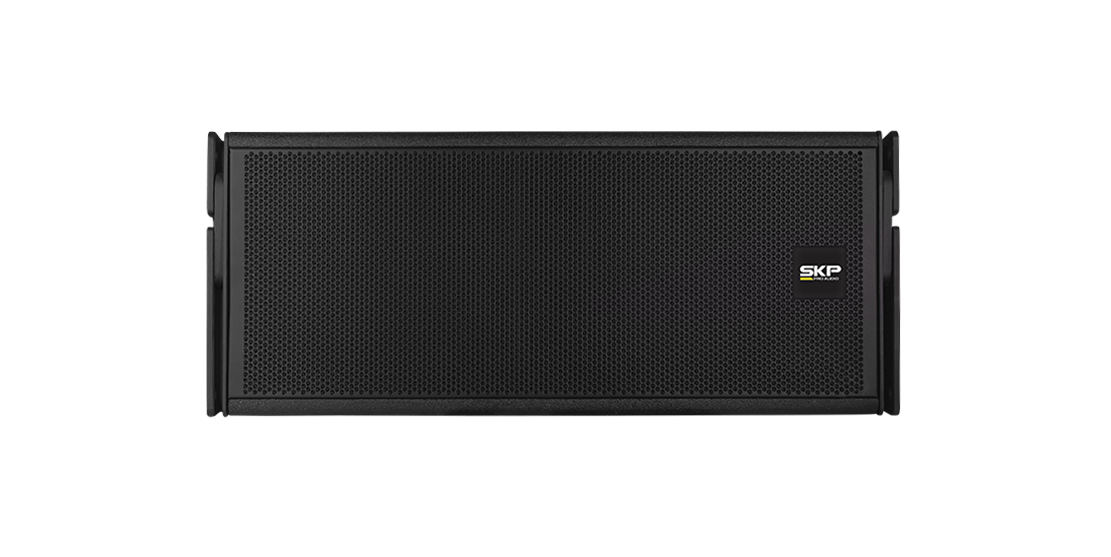

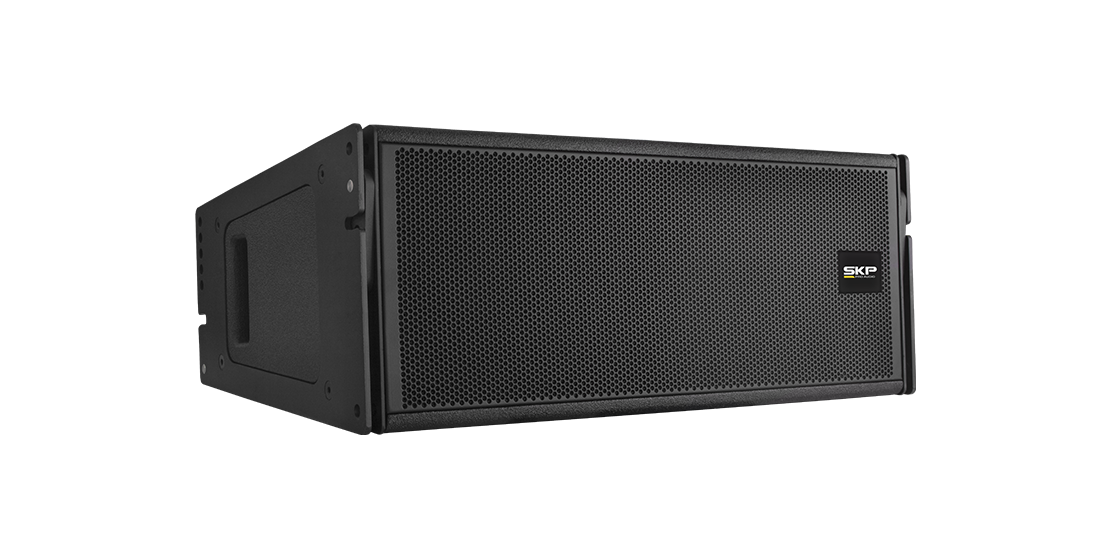

8.3 / 3-way active Line Array.

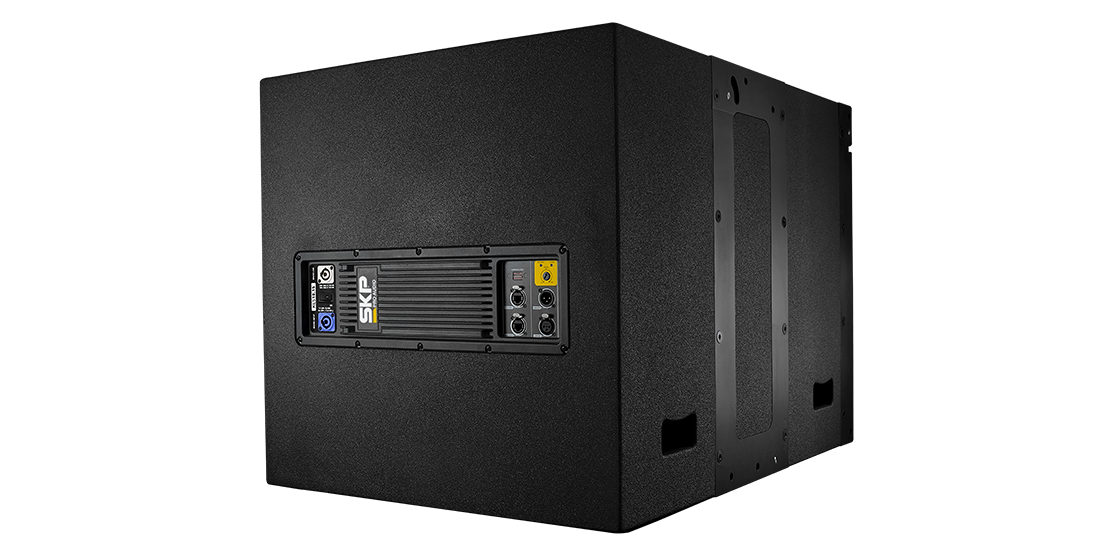

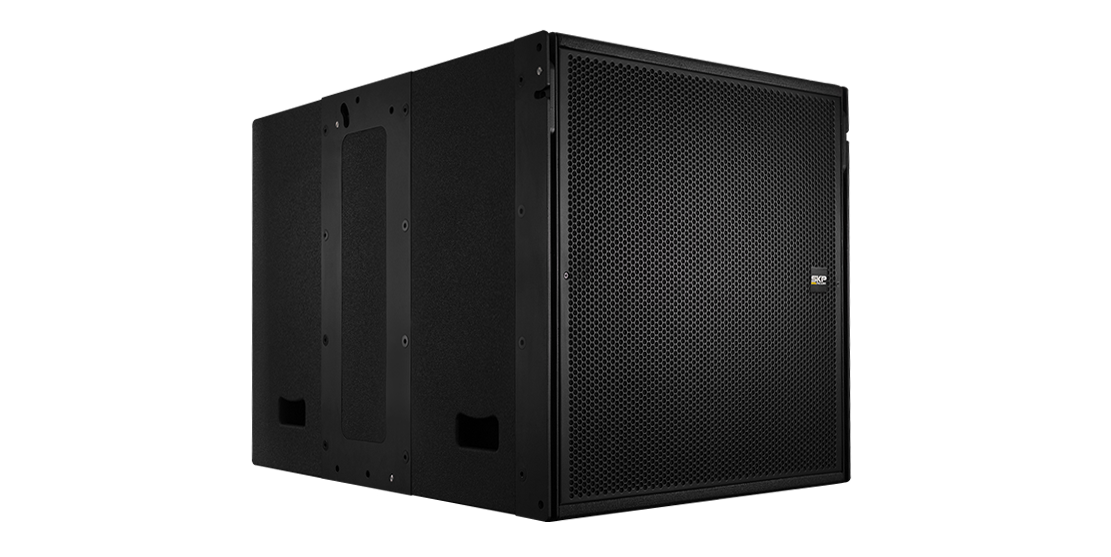

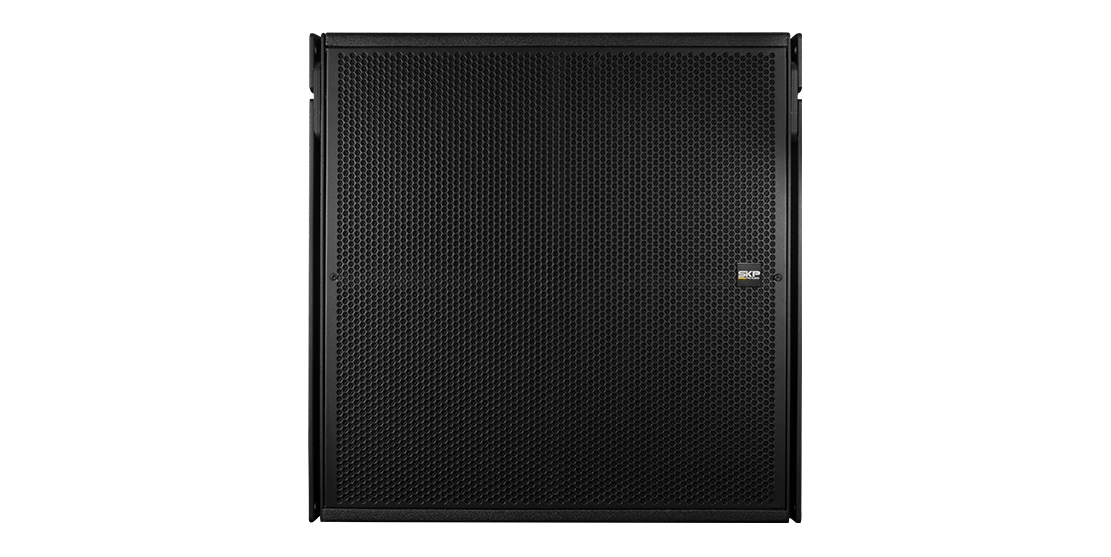

18.1 / 18'' active subwoofer.
4-way Line Array System
8.3 / 3-way active Line Array.
18.1 / 18'' active subwoofer.
Sub 18'', 4'' VC
Class D amplifier
2000W Sub
1400W Sat

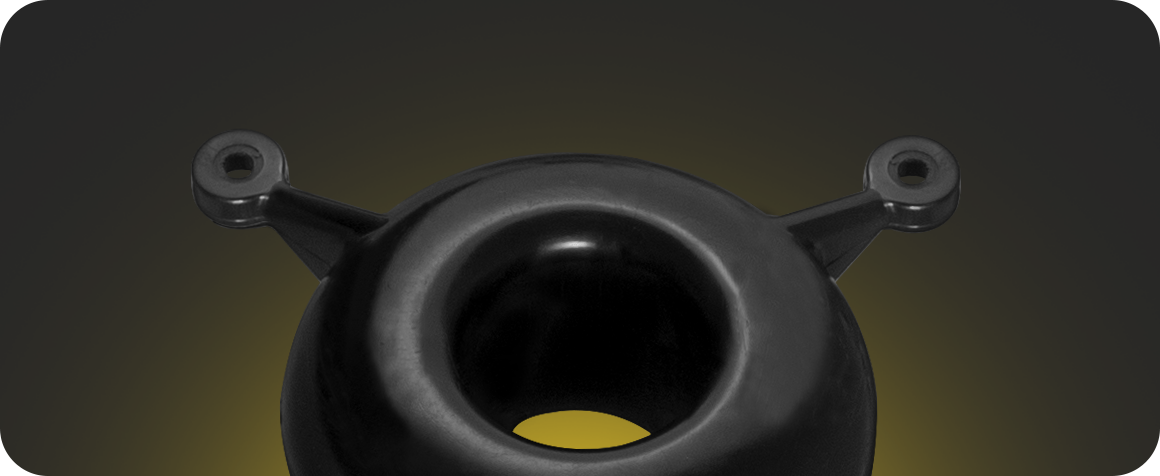

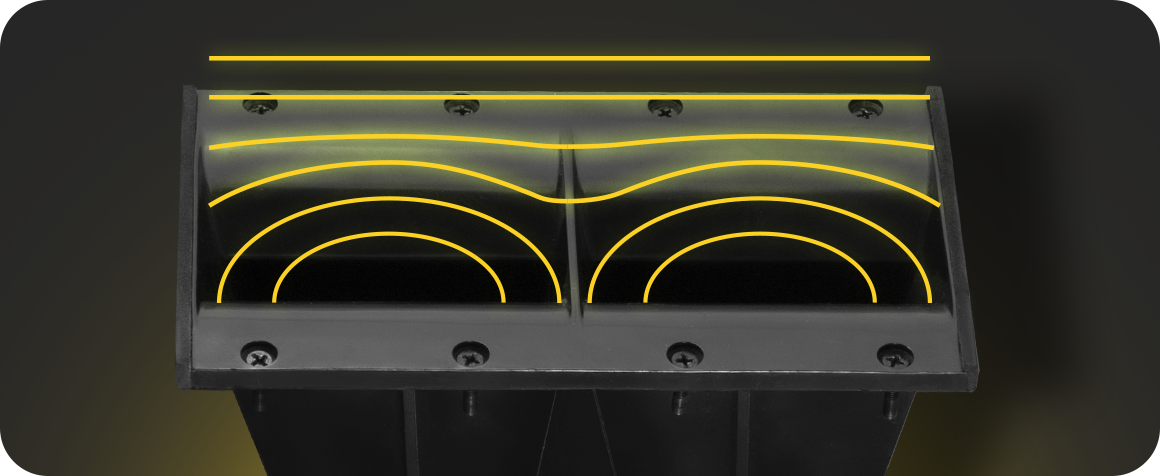

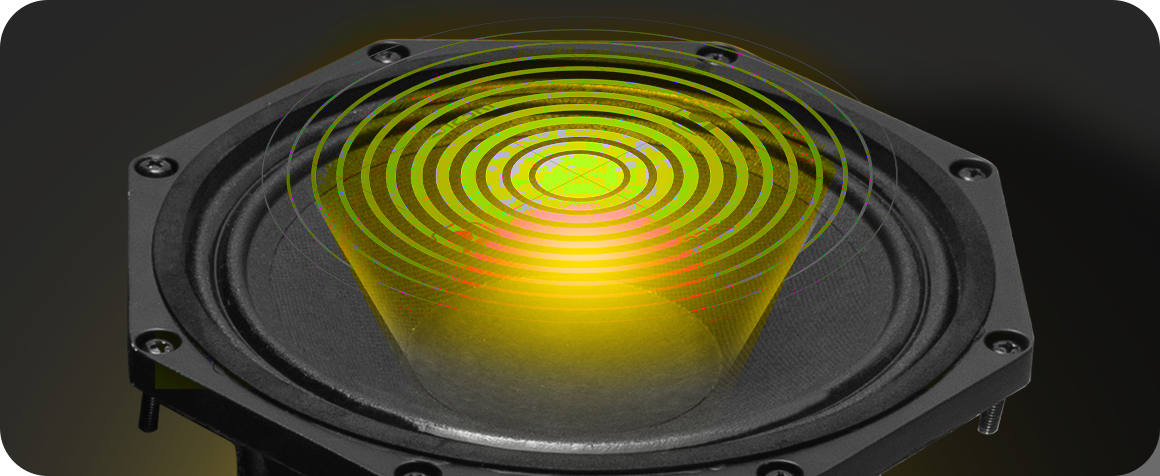

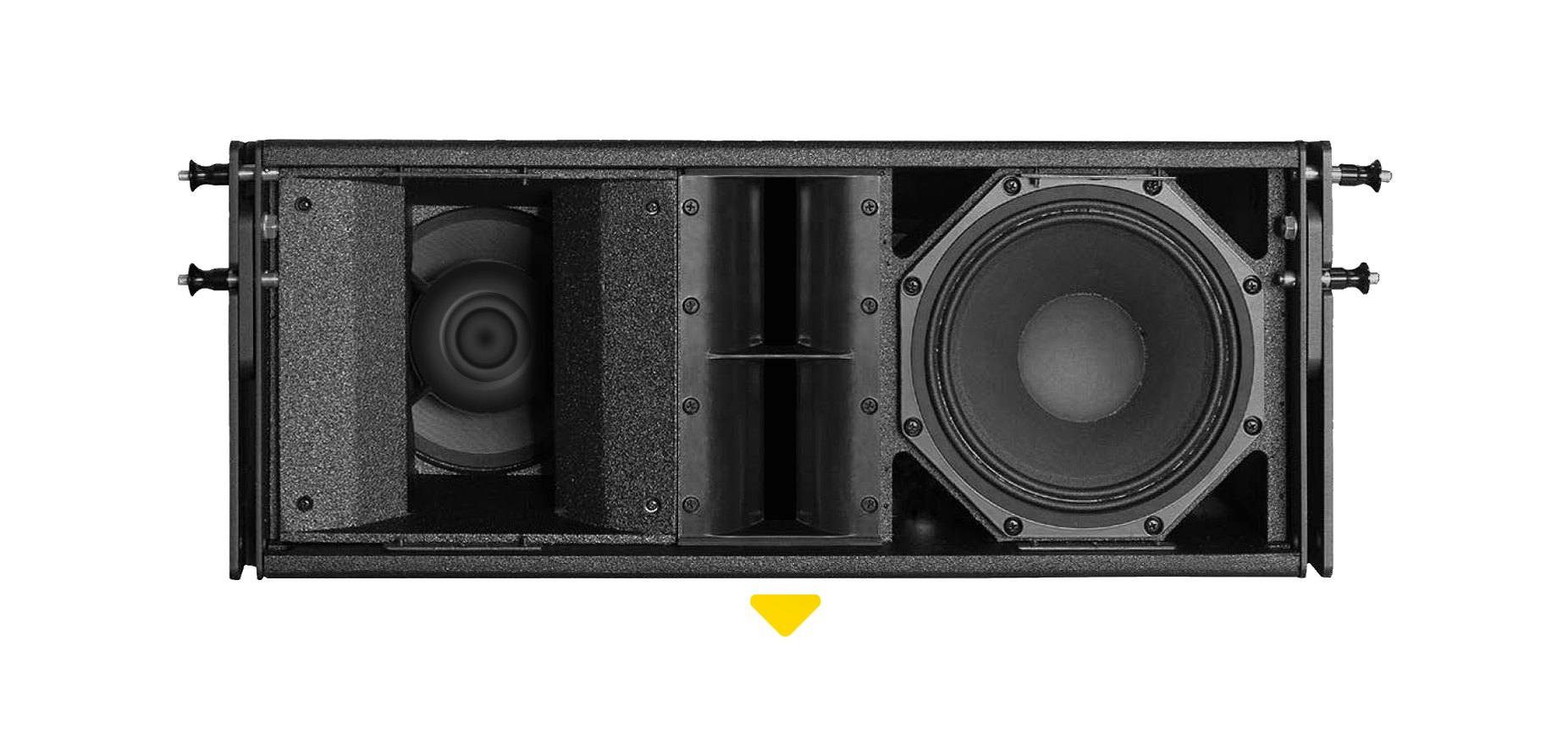

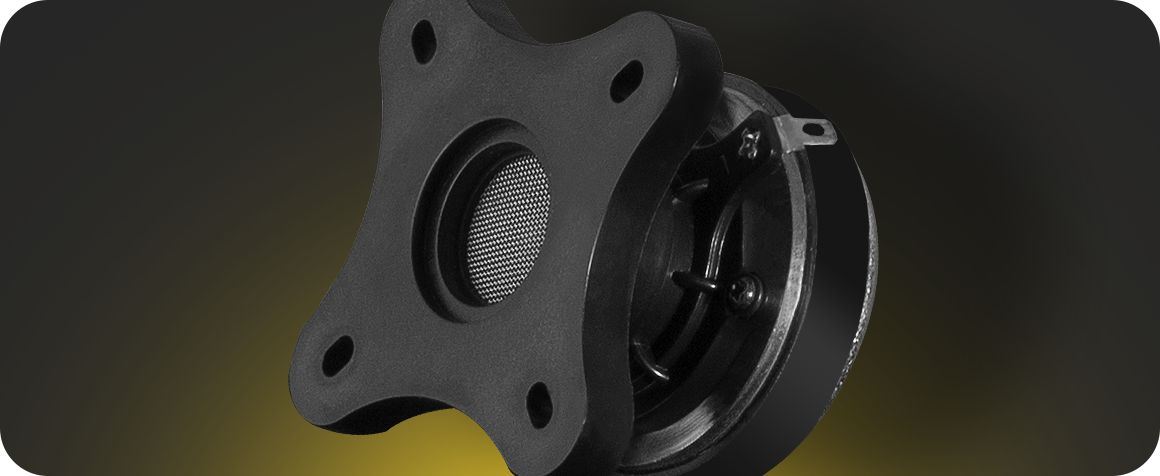

Its exclusive design allows less distortion and higher sound pressure level at all frequencies. Its two compression drivers allow high levels to be obtained at high frequencies and its two 8'' woofers distribute the medium and low frequencies to obtain better acoustic efficiency.

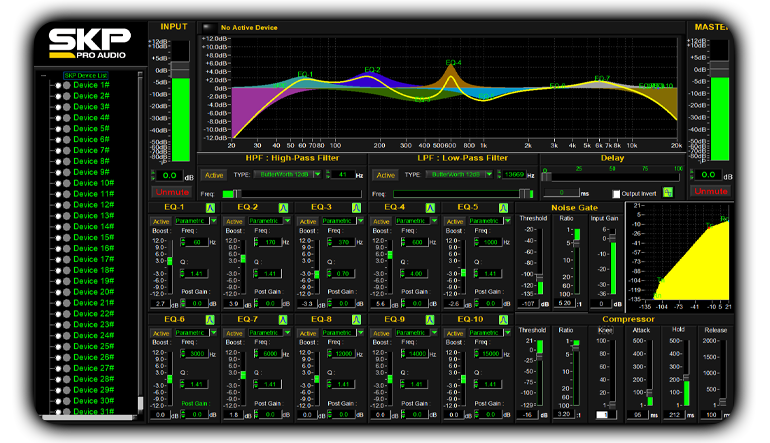

Connect each unit of KLS-8.3 and KLS 18.1S and through the exclusive processing software and control each unit individually.
- Individual control of up to 32 devices

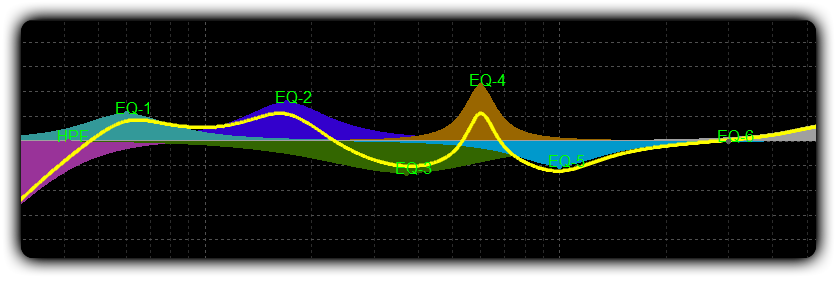

- 10 EQ with 11 types of variable FIR filters
- All Pass, parametric, Peaking, Shelvin (LS/HS), General (LP/HP/BP/BS), Butterworth (LP/HP), Chebyshev (LP/HP), Tone control, Notch and IIR Coefficient
- Master LPF, HPF, Delay, Noise Gate, Compressor/Limiter and much more

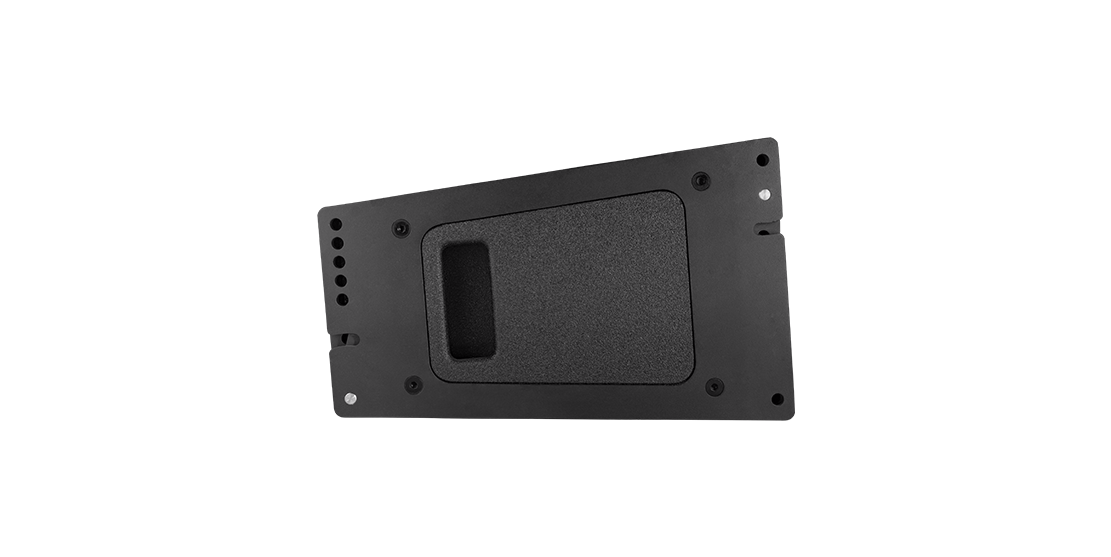

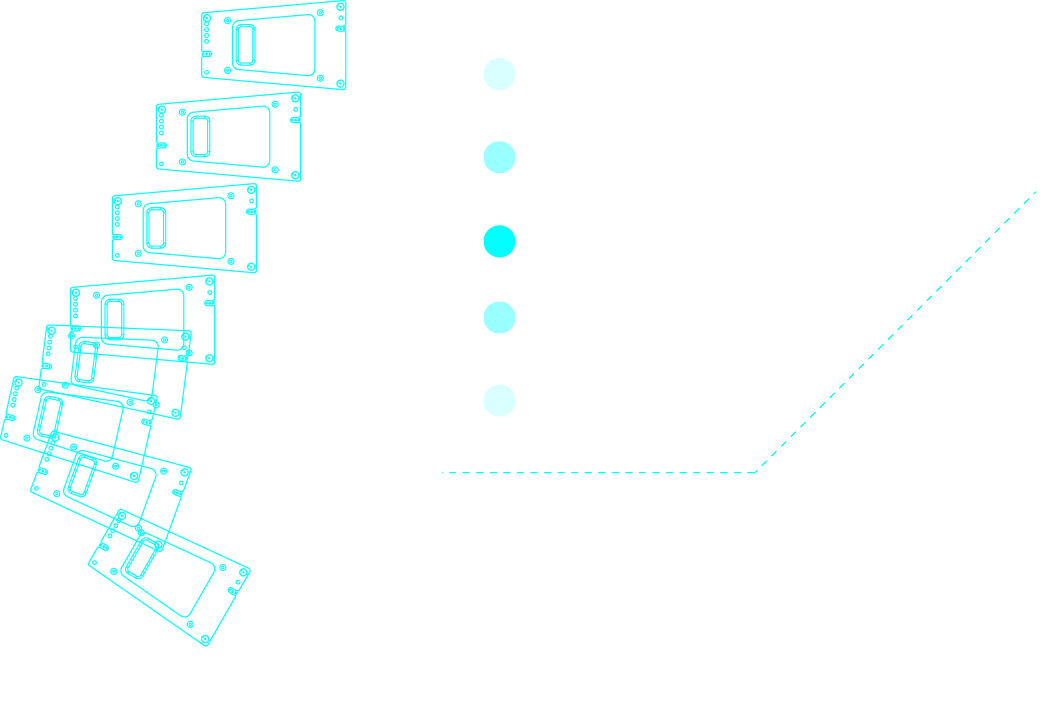

Five optimized angles for better coverage and controlled comb filtering. These angles are 0°, 2.5°, 5°, 7.5°, and 10°.

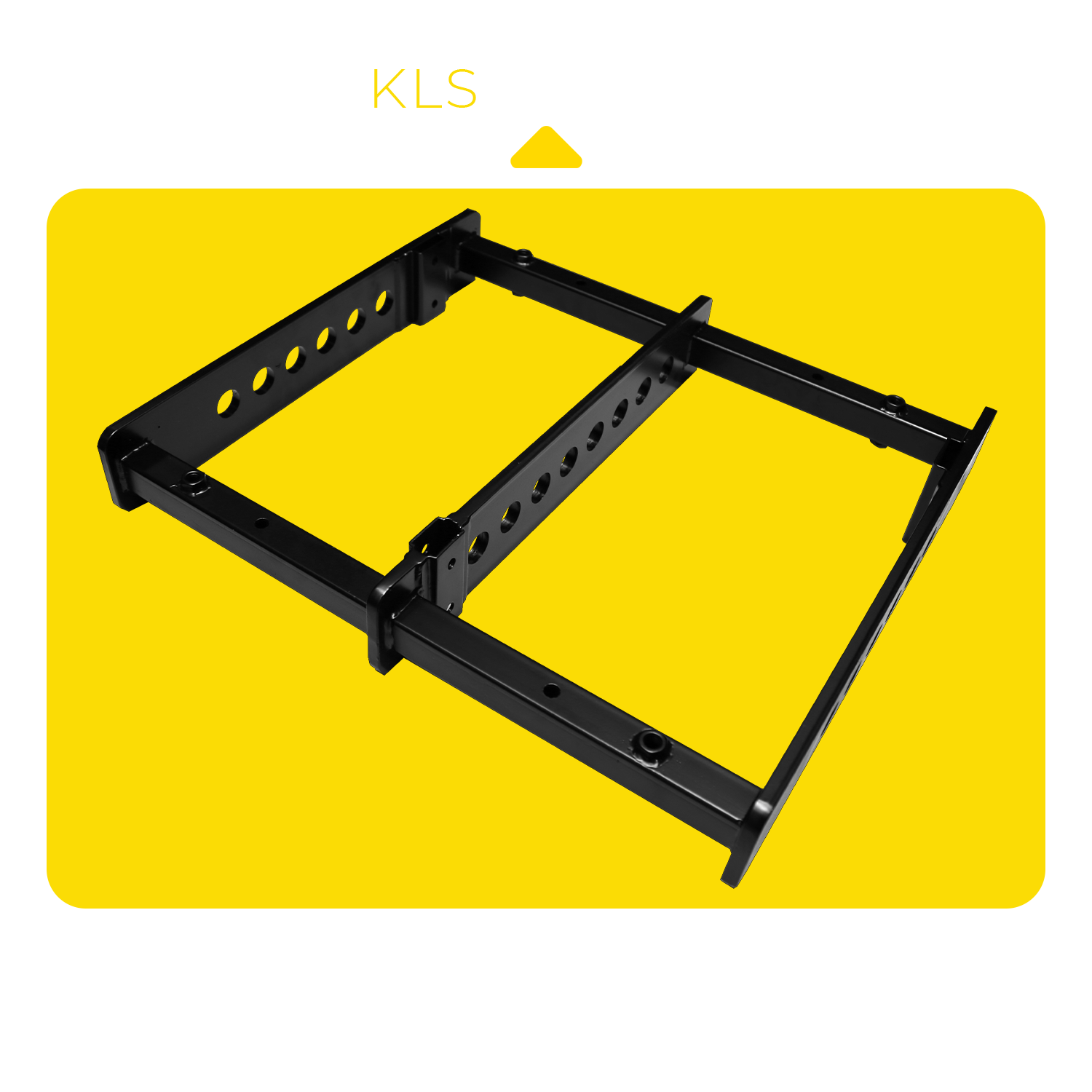

Effective and precise system for a fast and safe adjustment. It has never been easier to set up a system thanks to its handles. Fully compatible with KLS-FRAME.

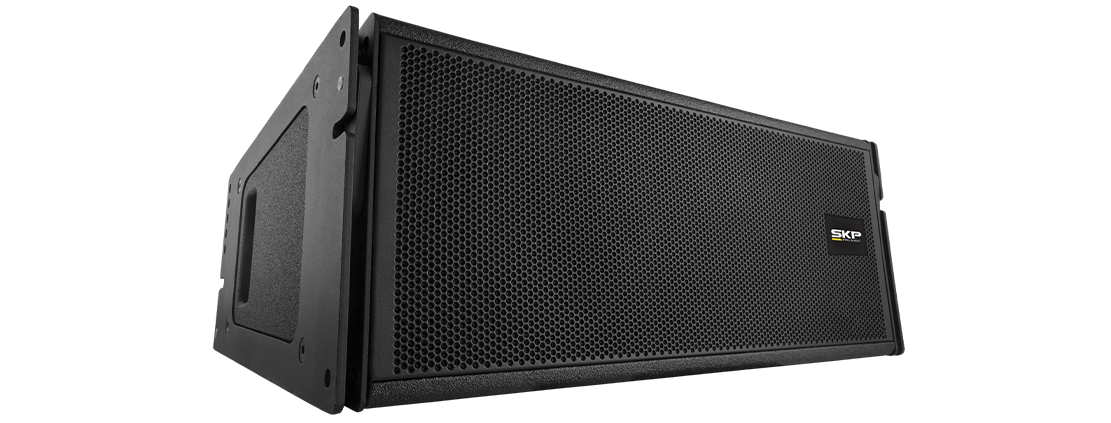

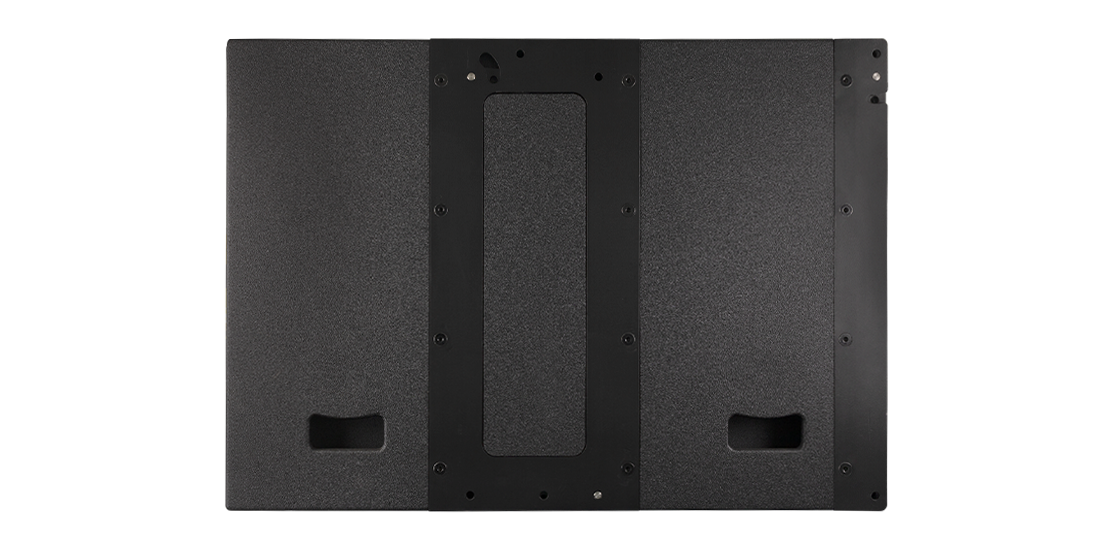

Housed in a robust, heavy-duty finished wood cabinet with a strong, easy-to-use mounting system.
It only takes one adjustment to set coverage, safely and quickly.
Regardless of the filters applied and the physical position of each box, thanks to the latest generation processor and the implementation of FIR filters, the phase response of each system component can be individually adjusted. As a result, the constant phase can be maintained in all acoustic cabinets, achieving ideal coherence and interaction between electroacoustic components. This generates uniform spatial coverage across the entire frequency spectrum.

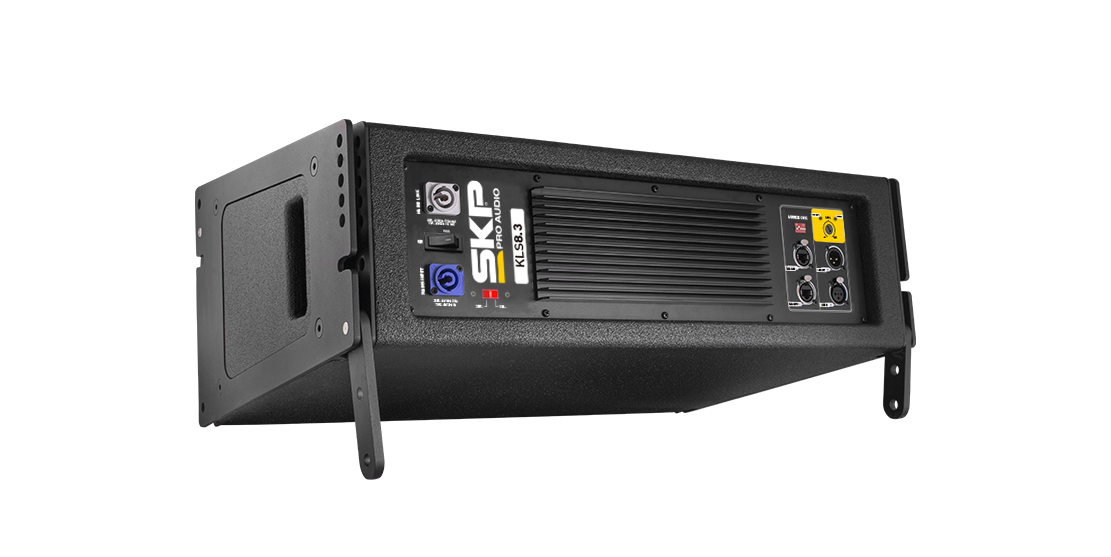

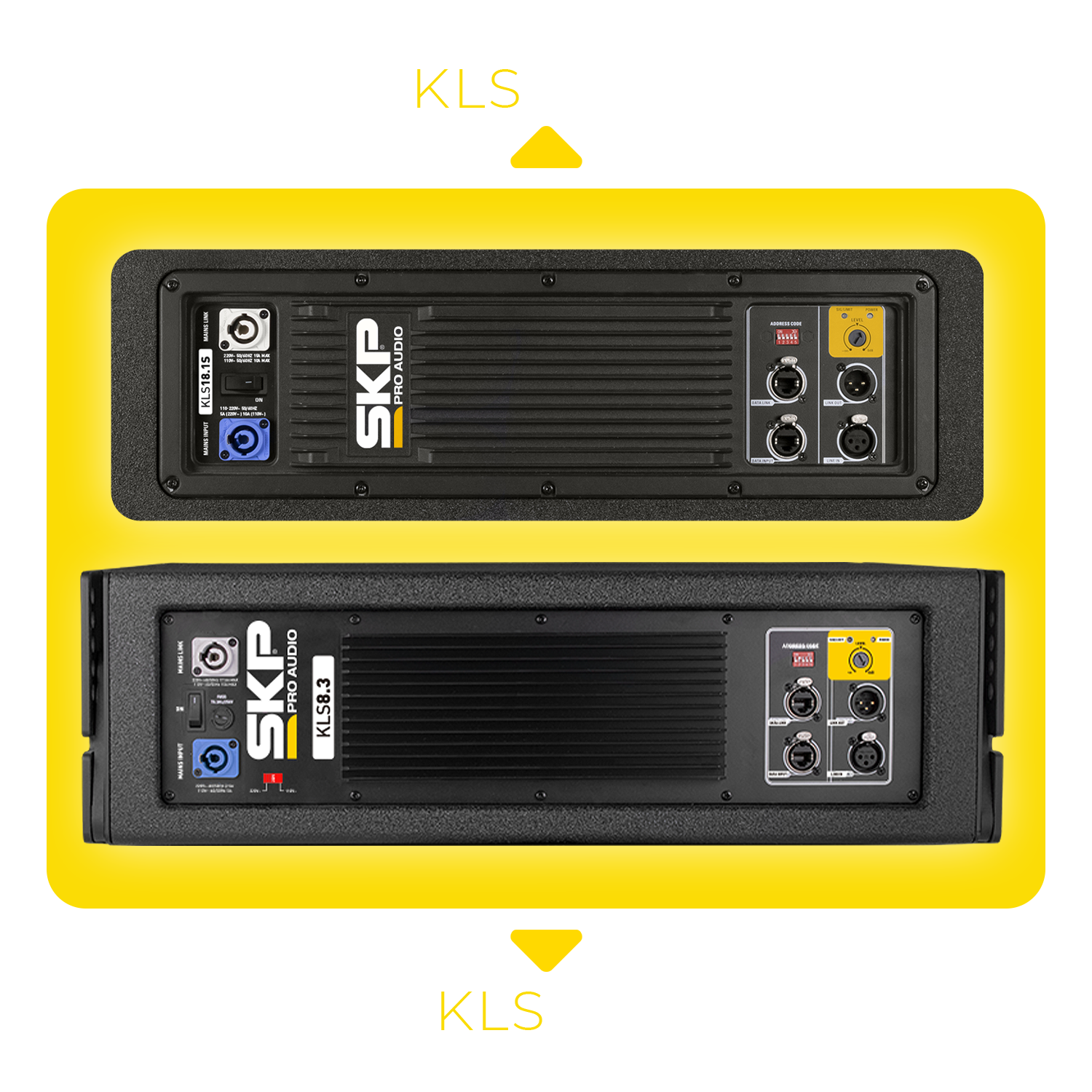

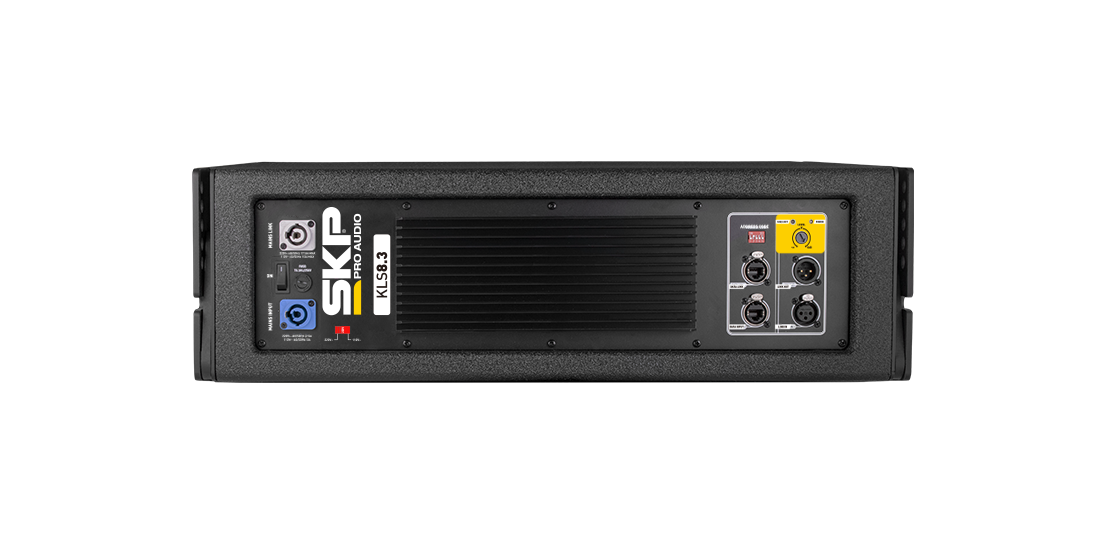

Connect all devices via RS485 for individual control of each one.
Link power.
Line input and output for each device.
Select the gain level of each satellite individually.
| Amplifier | KLS-8.3 | KLS-18.1S |
|---|---|---|
| Imputs | XLR input | XLR input |
| Outputs | XLR link output | XLR link or crossover output |
| Power | 1400W RMS | 1000W RMS |
| Volume | Individual volume control | Individual volume control |
| Speaker | ||
| type | 3-way fan active speaker | Active bandpass subwoofer |
| Frequency response | 60 Hz – 20 kHz | 34 Hz – 120 Hz |
| Impedance | 4 Ω | 8 Ω |
| Maximum NPS (1m) | 130 dB | 134 dB |
| Driver | 1 x 8'' woofer, 2.5'' voice coil, 2 x 1.4'' compression drivers |
1 18'' Subwoofer, 4'' voice coil, 125 Oz |
| Cabinet | Optimized design of ventilated cabinet composed of Birch wood | Optimized design of ventilated cabinet composed of Birch wood |
| Grid | 1.2mm steel | 1.2mm steel |
| Packaging | ||
| Dimensions / G.W. | Dimensions / G.W. 515*365*735mm / 1 pcs / 33Kg | 1045*755*790mm / 1 pcs / 85Kg |
