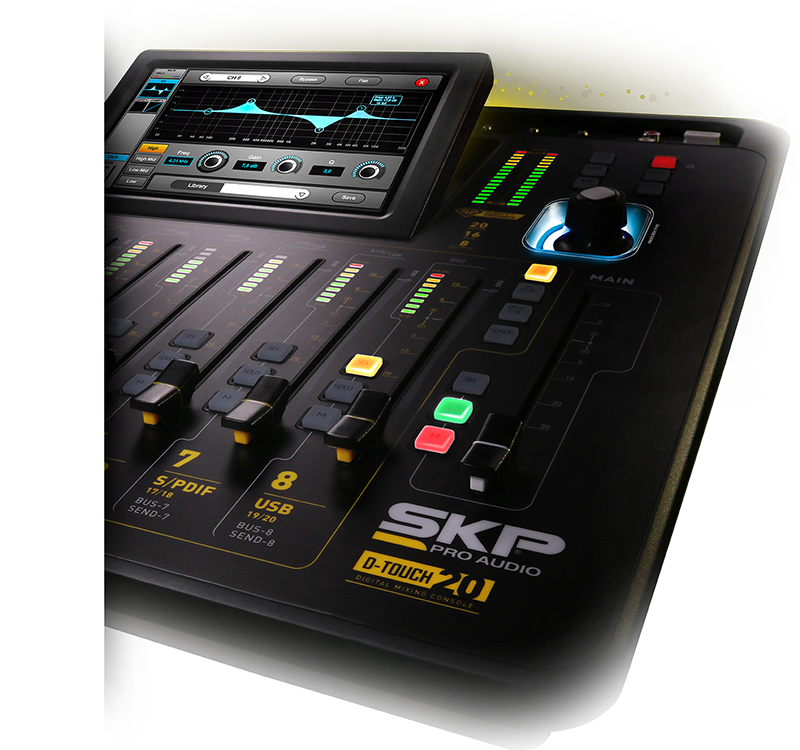

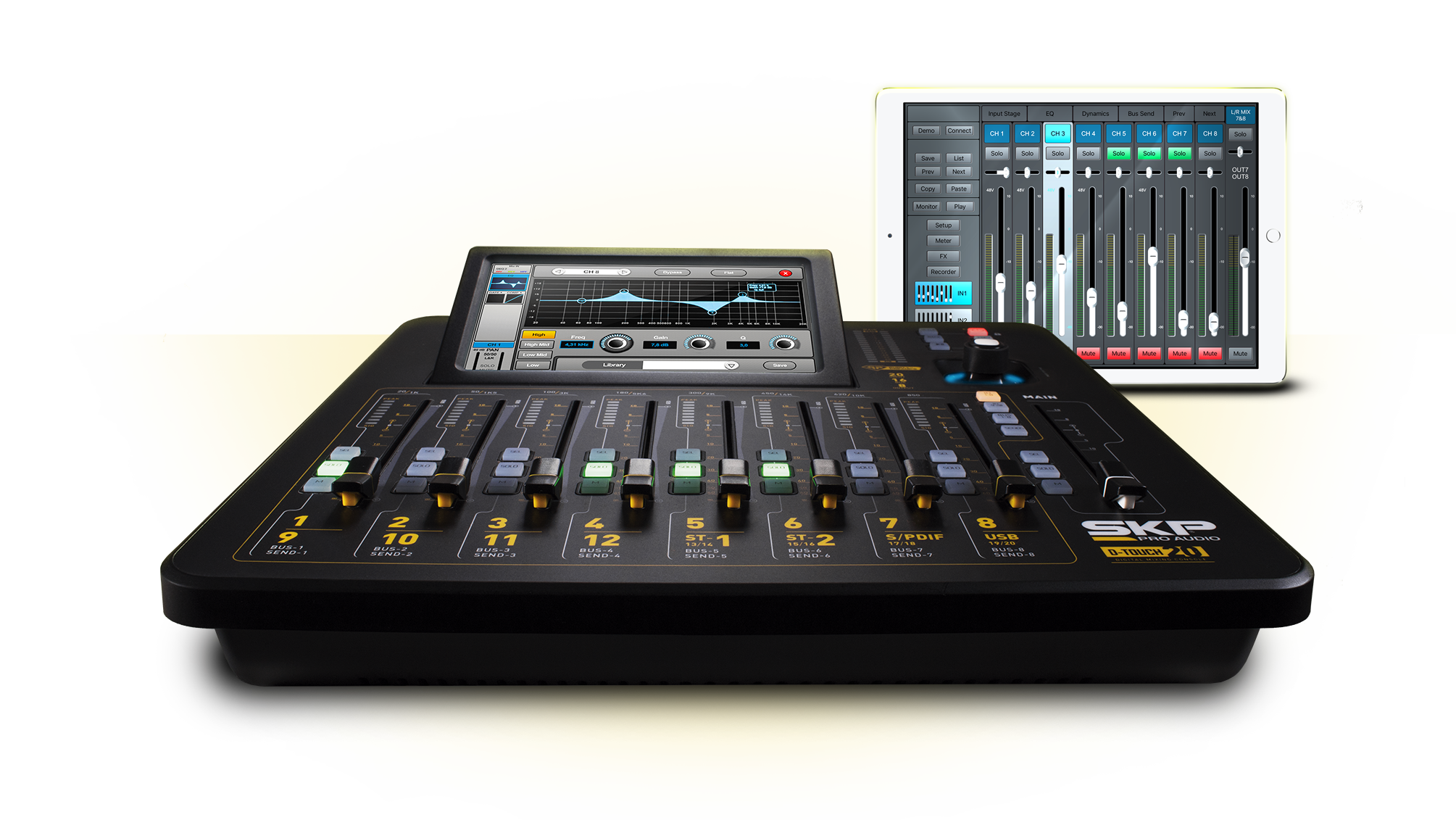

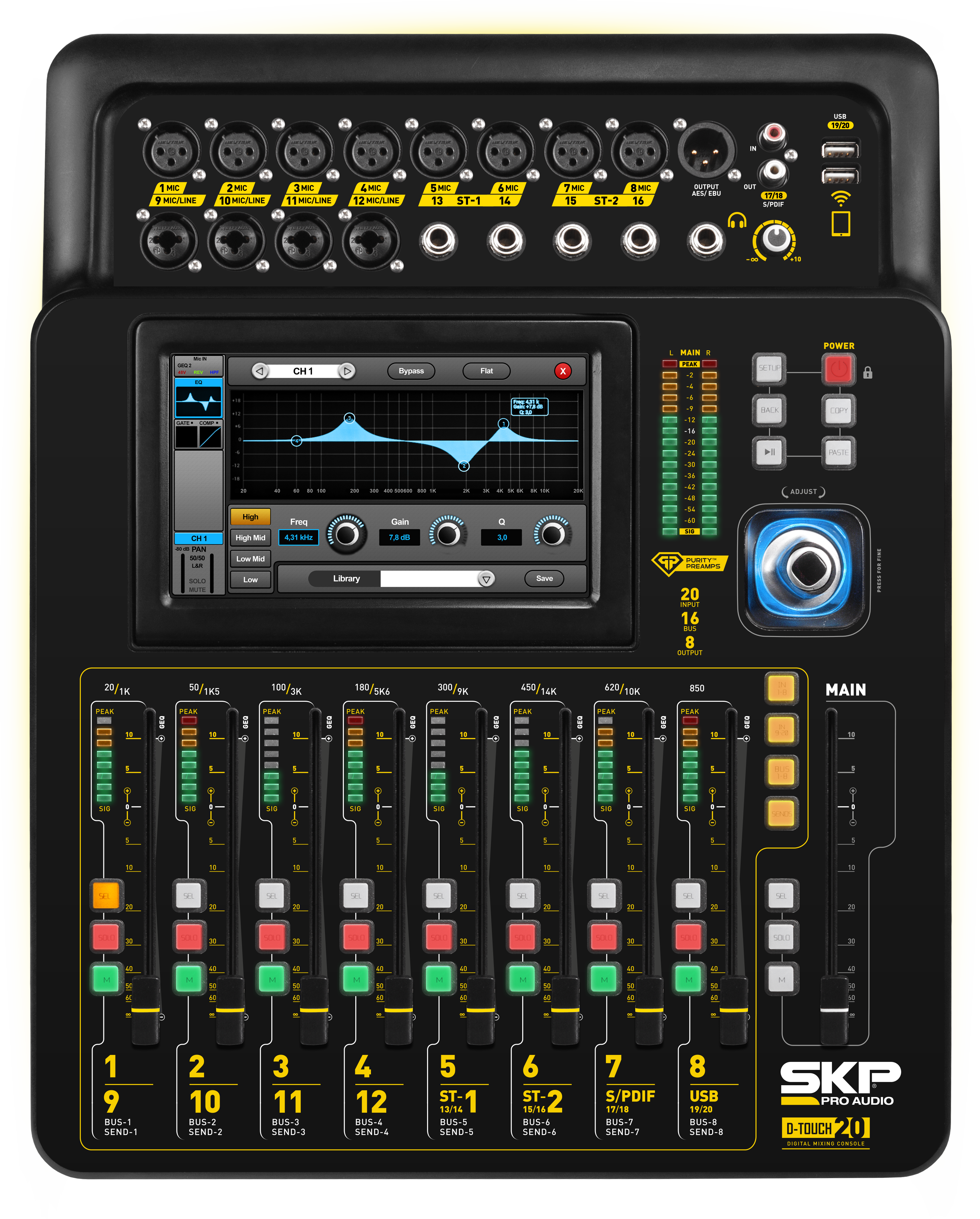

D-Touch 20
Digital Mixing Console

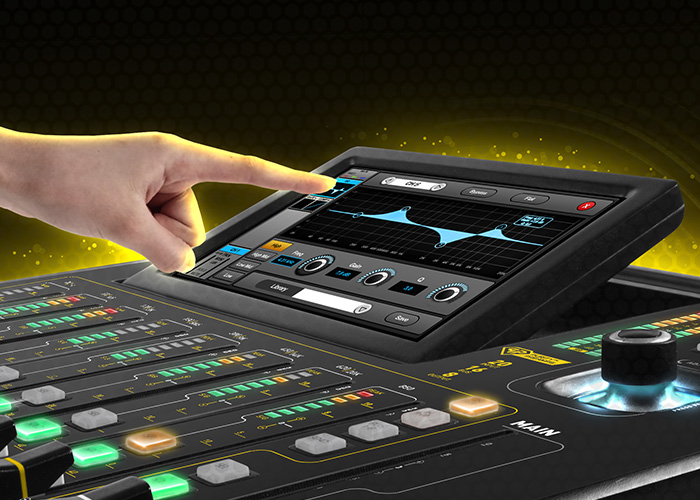

The D-touch 20 is the best choice in portable digital cols for its large 7 "display that allows absolute control of all its functions through it.
The D-touch 20 is the best choice in portable digital cols for its large 7 "display that allows absolute control of all its functions through it.
• 9 MOTORIZED FADERS 100mm
• WIFI INCLUDED
• 20-INPUT / 16-BUS / 8 OUTS
• 8 INTERNAL EFFECT MODULES
• TWO USB 2.0 TOUCH SCREEN BUILT IN 7"
• 3 YEARS WARRANTY
. 12 mic input with Purity Preamps and +48V Phantom Power
. 2 Stereo TRS input . S/PDIF I/O - AES/EBU output
. USB Stereo Input / USB Stereo Recording
. Digital Gain. Total Recall
. High QuaLiy Professional Neutrik® Connectors

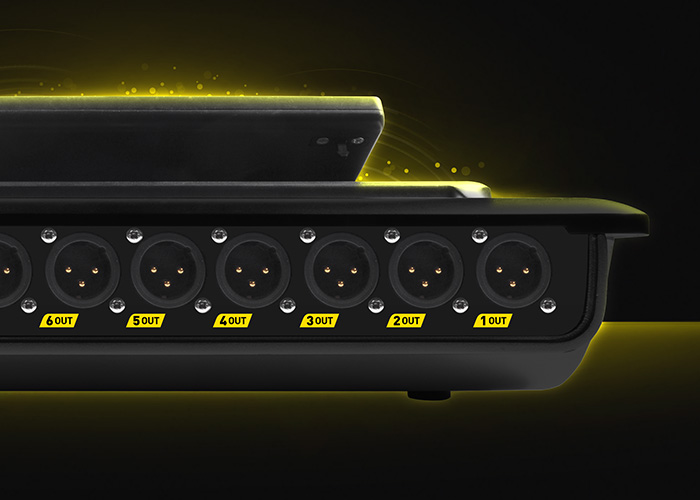

. 16 buses . 8 assignable XLR output connectors
. Stereo monitor output connector / Headphone output
. AD/DA up to 192kHz

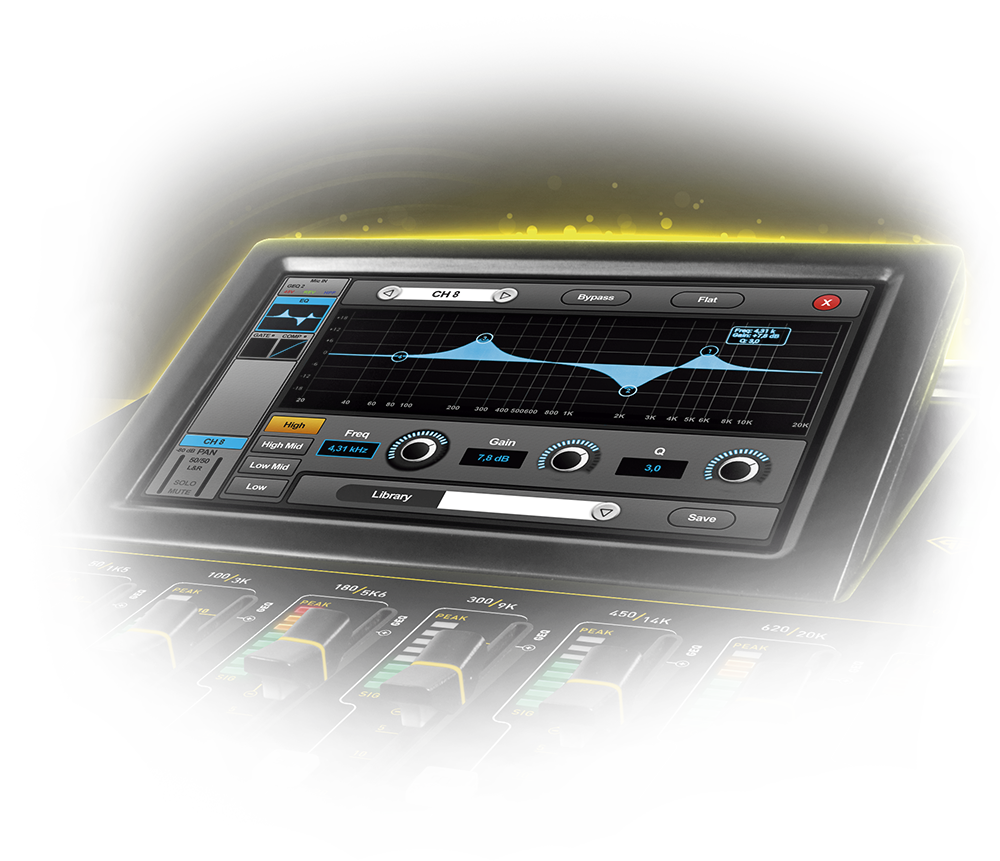

. 7” 1024px IPS Touchscreen
. Screen adjustabLe angle / Capacitive display
. TotaL Lock Security Function
. 9 Motorized faders 100mm / Send on Fader
. 10 Digital Vumeter
. 8 internal effect modules Modulation/Delay/Reverb/Graphic EQ
. Phase Inverter/Input Delay
. Compressor/Side Chain/Gate/Full—Parametric EQ
. Wifi USB / iPad remote control
Pingendo sets a new standard for apps.
Amazing, unique, essential and priceless
The D-TOUCH 20 is optimized in all aspects, designed for the most demanding sound engineer
Purity PreAmps™ Digital Gain. No need recall sheet. Turn on the audio console and start mixing.
Neutrik® is the leading supplier of professional entertainment connector products like audio, video, fiber optic and industrial connectors and interconnect systems.
Parameter adjustment high precision backlit Encoder. Press for a precise fit. 1 knob, total control.

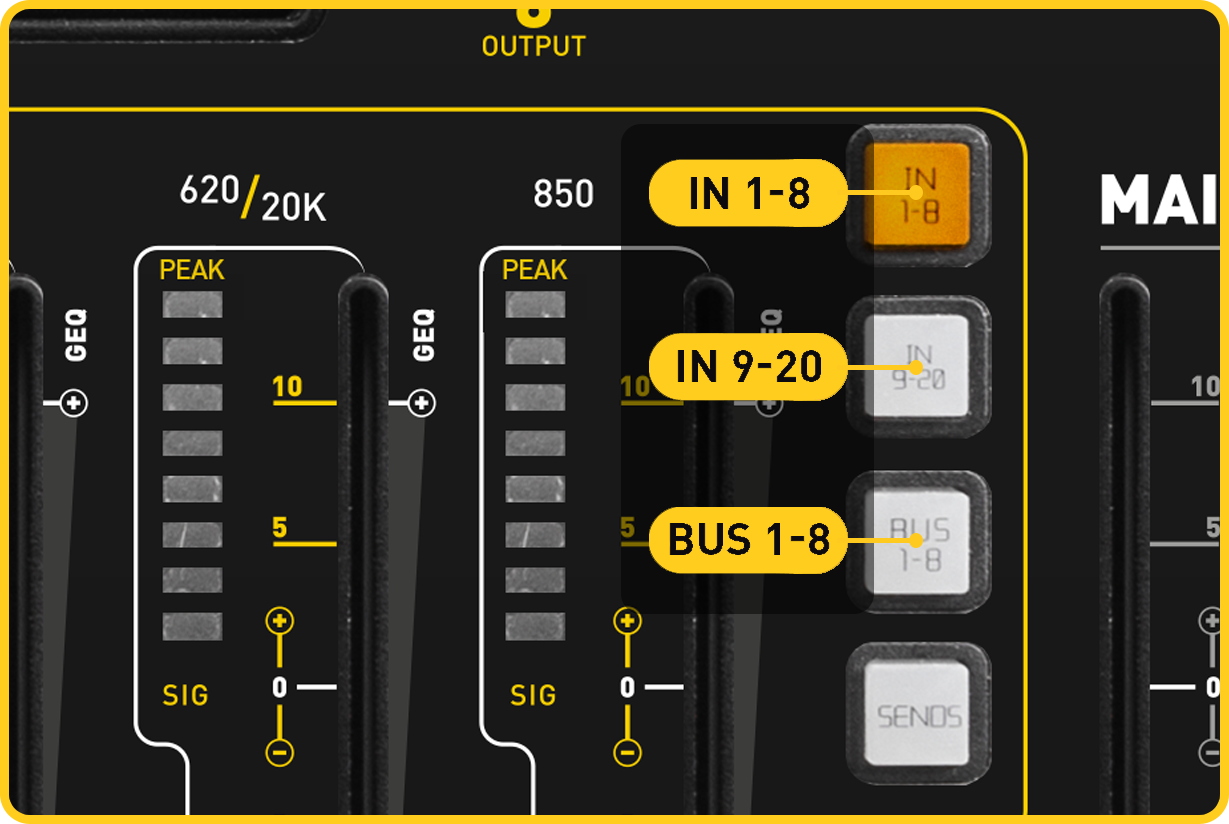

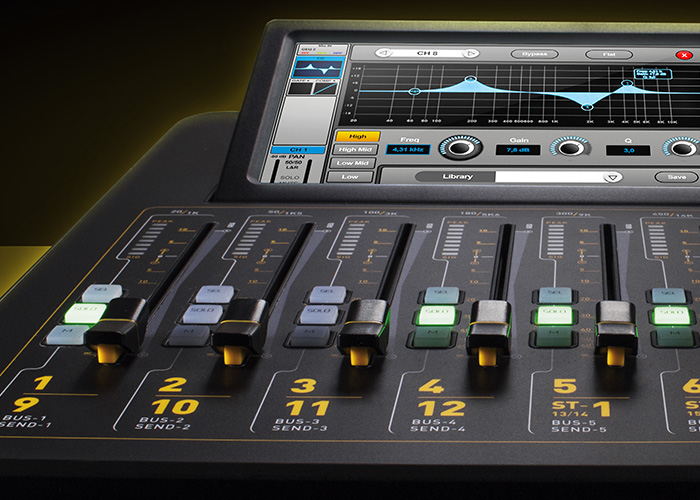

Select either channels 1-8 inputs, 19-20 inputs or 1-8 buses. Control the levels with 9 motorized faders. Send on faders function: Quickly assign any channel to all buses
8 segment led display for total control of all inputs levels and extended 16 segment display for master output. Precision in every mix detail.

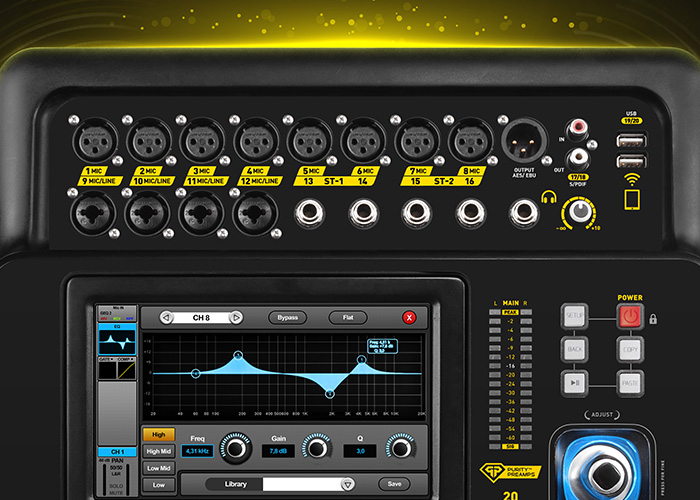

8 XLR, 4 TRS and 4 Combo inputs povides compatibility with all posible conexions. Designed for applications in stages, shows and more...
Pingendo sets a new standard for apps.
Amazing, unique, essential and priceless
Up to 8 effect modules Modulations, reverbs, delays and graphic EQ.
Full-configurable and customized patch way for any situation.
Route the signals wherever you need with 4 mono / 4 stereo Buses and 4 digital buses.
Full-configurable Compressor and Gate. All analog inputs with dynamic prossesors.

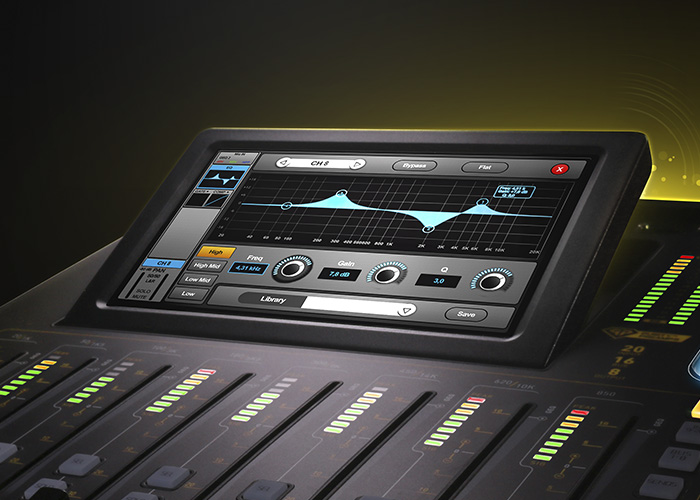

With 4-band parametric EQ. Full control of the frequency spectrum in each channel and output.
Up to 8 auxiliary sends, quickly and easily assignable.
Pingendo sets a new standard for apps.
Amazing, unique, essential and priceless
Pingendo sets a new standard for apps.
Amazing, unique, essential and priceless

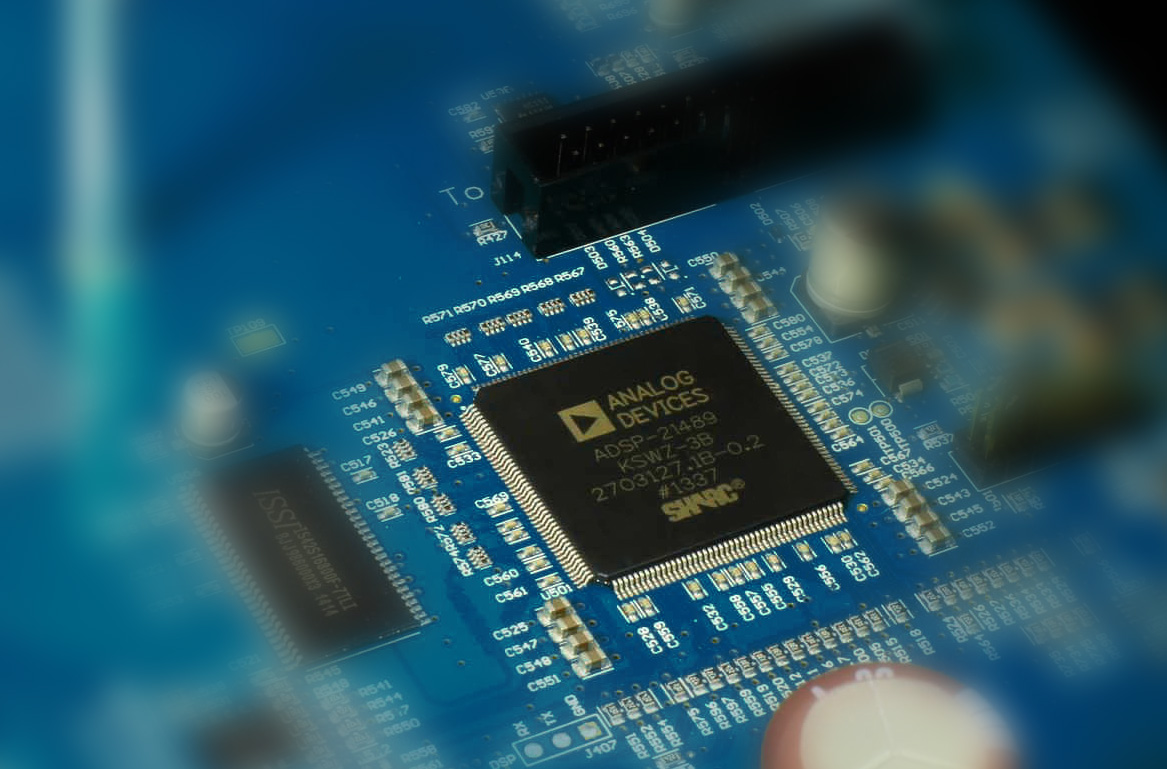

• Great performance
• Ultra-fast processing time
• AD/DA with wide dynamic range

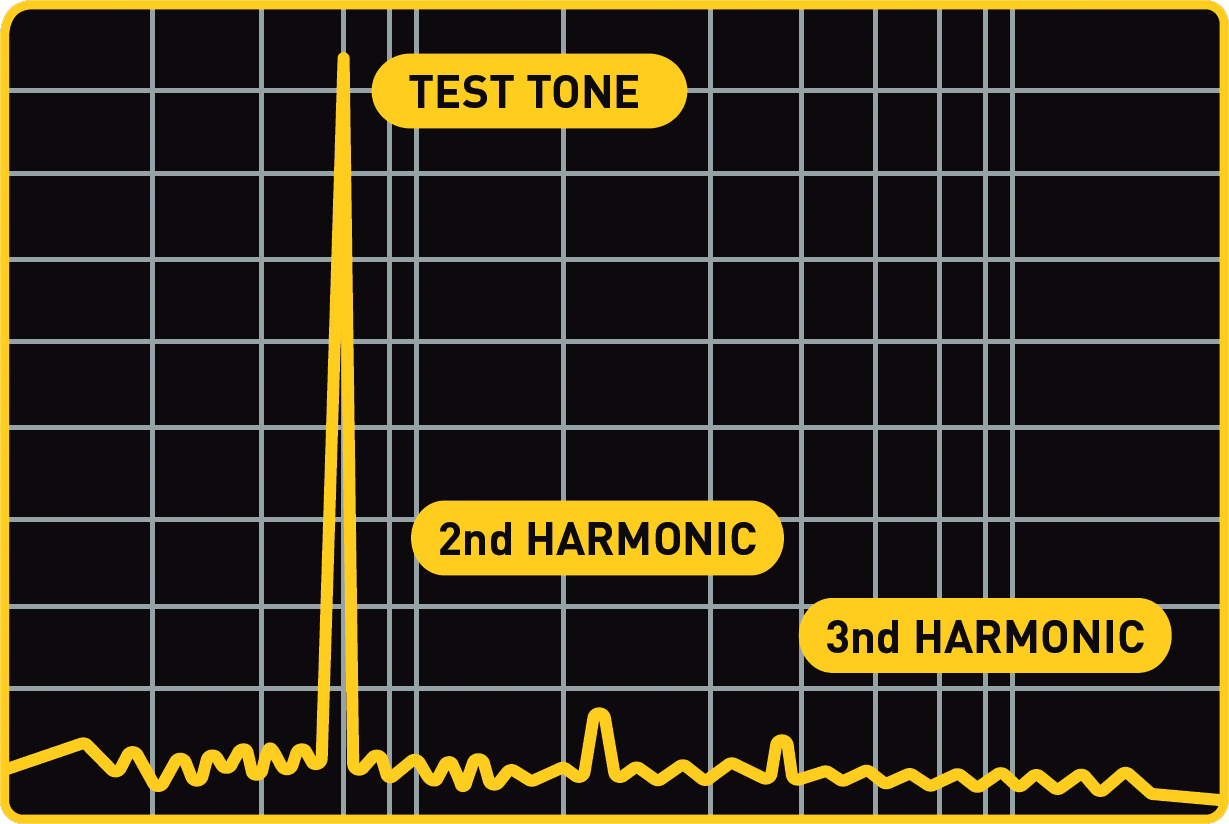

• Ultra-low output distortion

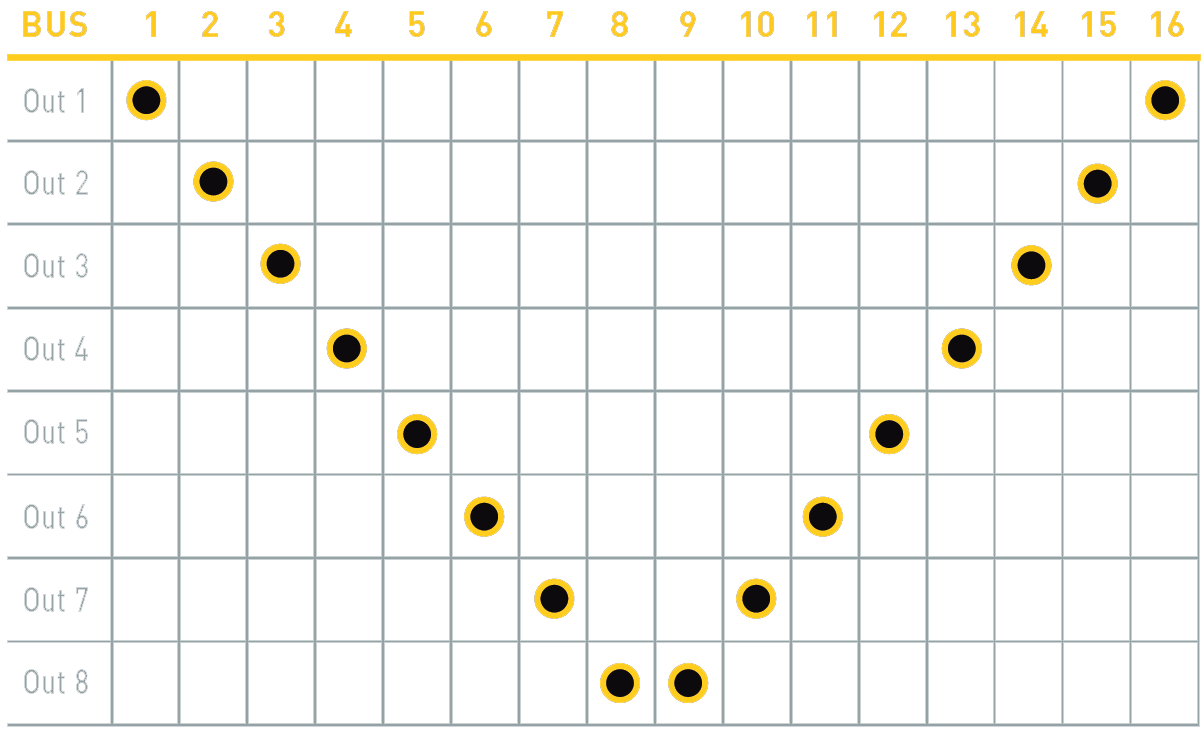

D-Touch 20 offers 16 internal buses that can be patched to the physical XLR, S/PDIF and AES/EBU.
• Modulation, Reverb and Delay libraries.
• Custom Channel and Bus names are displayed in sends section.
• Assigned colours to Channels and Busses.
• 31 bands GEQ.
• Measurement RTA function.
• Sends on faders function optimized.
• Compatible with .ogg, .flac and .ape files.
Pingendo sets a new standard for apps.
Amazing, unique, essential and priceless
4 Steps to update Software to Version 1.5.4
Pingendo sets a new standard for apps.
Amazing, unique, essential and priceless

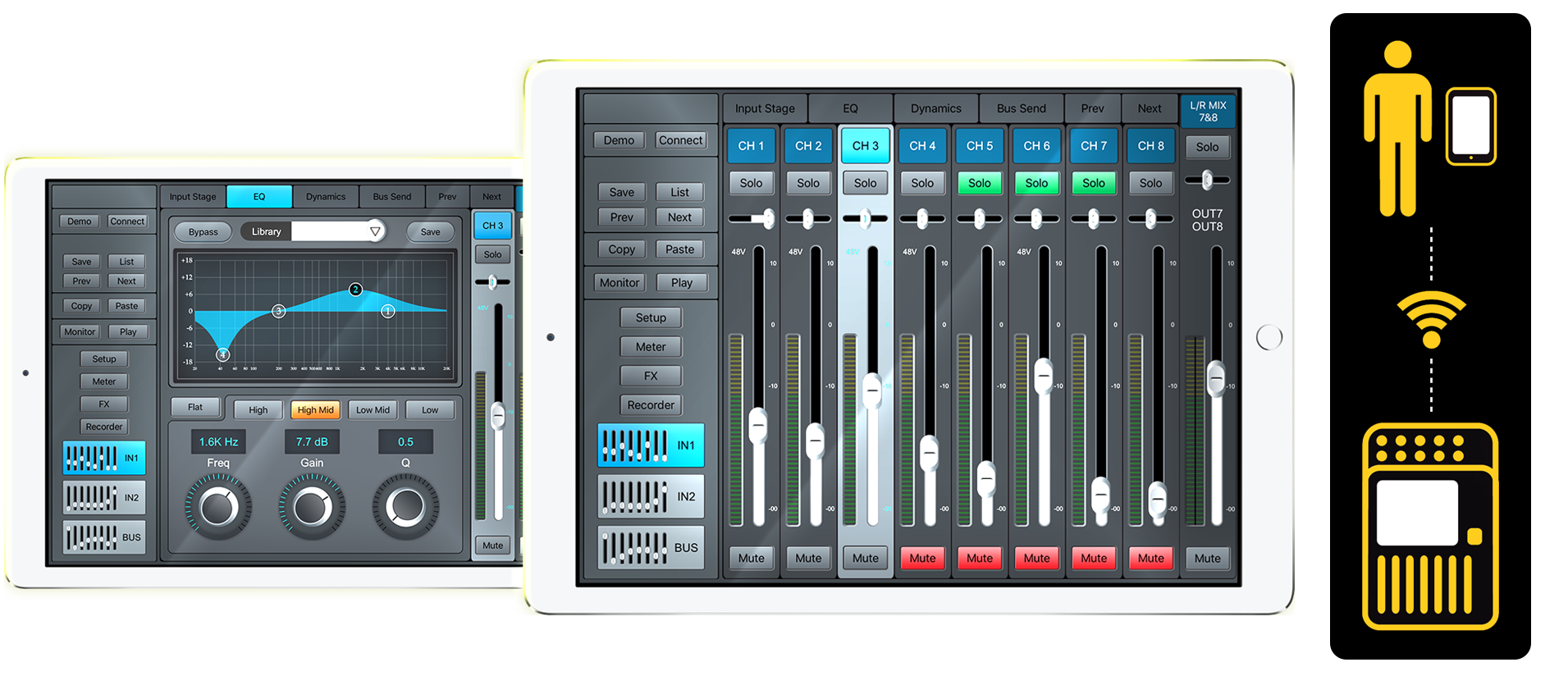

Use your personal iPad to control all D-Touch 20 functions remotely.
